FIBER DUCT MANAGEMENT


Fiber cable trays are designed to protect and route fiber optic patch cords, multi-fiber cable assemblies, and intrafacility fiber cable (IFC) to and from fiber splice enclosures, fiber distribution frames and fiber optic terminal devices. Fiber cable trays offer ideal solutions for optical raceway requirements and applications requiring an elegant appearance and easy maintenance.


60mm Movable Exit A Kit

•Item No:LC230

•Application:Cable Exit

•Spec:60(mm)

•Overall:255×208×141(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut(LT338 P55) each 1 piece,

cable-exit-120 (1).png

60mm Movable Exit B Kit

•Item No:LC250

•Application:60mmx60mm Cable Exit

•Spec:60(mm)

•Overall:134×89×78(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut(LT338 P55) each 1 piece,


90mm Movable Exit Kit

•Item No:LL220

•Application:Cable Exit

•Spec:90(mm)

•Overall:134×89×78(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut(LT338 P55) each 2 piece


120mm Movable Exit Kit

•Item No:LL240

•Application:Cable Exit

•Spec:120(mm)

•Overall:250×211×146(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut(LT338 P55) each 2 piece


130mm Movable Exit Kit

•Item No:LL210

•Application:Cable Exit

•Spec:130(mm)

•Overall:226×170×130(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw (LT5B4 P55) and twist head nut (LT338 P55) each 2 piece


60mm End Cap Kit

•Item No:LE221

•Application:60×60mm Fibre Management System

•Spec:60(mm)

•Overall:199×60×122(mm)

•Flame Retardant:UL94-V0

•Installation Needs:-

end-cap-kit-120 (1).png

120mm End Cap Kit

•Item No:LL23A

•Application:120×100mm Fibre Management System

•Spec:120(mm)

•Overall:150×25×116(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and Twist nut each 4 piece

end-cap-kit-240 (1).png

240mm End Cap Kit

•Item No:LL26A

•Application:240×100mm Fibre Management System

•Spec:240(mm)

•Overall:270×25×115.5(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw and twist head nut each 4 piece


360mm End Cap Kit

•Item No:LL28A

•Application:360×100mm Fibre Management System

•Spec:360(mm)

•Overall:390×26.5×115(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw and twist head nut each 5 piece

horizontal-cross-60 (1).png

60mm Horizontal Cross

•Item No:31130

•Application:60×60mm Fibre Management System

•Spec:60×60(mm)

•Overall:201×201×61(mm)

•Flame Retardant:UL94-V0

•Installation Needs:No accessories; optional cover


120mm Horizontal Cross

•Item No:31330

•Application:120×100mm Fibre Management Syste

•Spec:120×100(mm)

•Overall:356×356×118(mm)

•Flame Retardant:UL94-V0

•Installation Needs:4 connectors are needed for installation;optional cover


120mm Horizontal Cross Connector Free

•Item No:LL23J

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:280×280×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:4 connectors are needed for installation;optional cover


240mm Horizontal Cross

•Item No:31330

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:476×476×119(mm)

•Flame Retardant:UL94-V0

•Installation Needs:4 connectors are needed for installation;optional cover


240mm Horizontal Cross Connector Free

•Item No:LL26J

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:410×410×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:4 connectors are needed for installation;optional cover


360mm Horizontal Cross

•Item No:31830

•Application:360×100mm Fibre Management System

•Spec:360×100(mm)

•Overall:590×590×118(mm)

•Flame Retardant:UL94-V0

•Installation Needs:4 piece of 360 type A connectors;optional cover

adaptor-240-120 (1).png

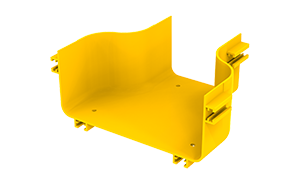

240 To 120 Adapter

•Item No:36310

•Application:240、120 Adapter

•Spec:240-120(mm)

•Overall:205×277×119(mm)

•Flame Retardant:UL94-V0

•Installation Needs:240 type B connector and 120 type B connector each 1 piece;optional cover


360 To 240 Adapter

•Item No:36510

•Application:360、240 Adapter

•Spec:360-240(mm)

•Overall:396×205×118(mm)

•Flame Retardant:UL94-V0

•Installation needs：360 type A connector and 240 type B connector each 1 piece;optional cover


150 To 120 Adapter

•Item No:LE221

•Application:150、120 Adapter

•Spec:150-120(mm)

•Overall:199×60×122(mm)

•Flame Retardant:UL94-V0

•Installation needs:T shape screw and twist head nut each 8 piece


​300 To 240 Adapter

•Item No:LE241

•Application:300、240 Adapter

•Spec:300-240(mm)

•Overall:344×60×122(mm)

•Flame Retardant:UL94-V0

•Installation needs:T shape screw and twist head nut each 8 piece


Adaptor From Panduit 100mm To Lepin 120

•Item No:LL215

•Application:Adaptor From Panduit 100mm To Lepin 120

•Spec:120-100(mm)

•Overall:165×100×121(mm)

•Flame Retardant:UL94-V0

•Installation needs:T shape screw and twist head nut each 6 piece


Adaptor From Panduit 150 To Lepin 120

•Item No:LE225

•Application:Adaptor From Panduit 150 To Lepin 120

•Spec:120-150(mm)

•Overall:201×100×121(mm)

•Flame Retardant:UL94-V0

•Installation needs:T shape screw and twist head nut each 6 piece


Adaptor From Adc 100 To Lepin 120

•Item No:LL237

•Application:Adaptor From Adc 100 To Lepin 120

•Spec:120-100(mm)

•Overall:165×101×121(mm)

•Flame Retardant:UL94-V0

•Installation needs:T shape screw and twist head nut each 8 piece


60mm 90° Up Elbow

•Item No:311S0

•Application:60×60mm Fibre Management System

•Spec:60×60(mm)

•Overall:140×64×140(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Connectors are needed for installation;optional cover


60mm 90° Down Elbow

•Item No:311X0

•Application:60×60mm Fibre Management System

•Spec:60×60(mm)

•Overall:140×64×140(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Connectors are needed for installation;optional cover

down-elbow-120s (1).png

120mm 45° Up Elbow

•Item No:313F0

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:210×155×167(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Connectors are needed for installation;optional cover

down-elbow-120x (1).png

120mm 45° Down Elbow

•Item No:31380

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:157×197×194(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Connectors are needed for installation;optional cover


240mm 45° Up Elbow

•Item No:316F0

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:275×210×167(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Piece of 240mm connector B kit are needed for installation;optional cover


240mm 45° Down Elbow

•Item No:316F0

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:275×210×167(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Piece of 240mm connector B kit are needed for installation;optional cover


360mm 45° Up Elbow

•Item No:318F0

•Application:360×100mm Fibre Management System

•Spec:360×100(mm)

•Overall:396×205×168(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 piece of 360 type A connectors;optional cover


360mm 45° Down Elbow

•Item No:31880

•Application:360×100mm Fibre Management System

•Spec:360×100(mm)

•Overall:396×186.5×161(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 piece of 360 type A connectors;optional cover


60mm Horizontal Tee

•Item No:31120

•Application:60×60mm Fibre Management System

•Spec:60×60(mm)

•Overall:201×134×61(mm)

•Flame Retardant:UL94-V0

•Installation Needs:3 Connectors are needed for installation;optional cover


120mm Horizontal Tee

•Item No:31320

•Application:120×100mm Fibre Management Syste

•Spec:120×100(mm)

•Overall:258×258×118(mm)

•Flame Retardant:UL94-V0

•Installation Needs:3 Connectors are needed for installation;optional cover


120mm Horizontal Tee Connector Free

•Item No:LL237

•Application:120×100mm Fibre Management Syste

•Spec:120×100(mm)

•Overall:280×222×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut each 12 piece(LT338


240mm Horizontal Tee

•Item No:31620

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:377.5×377.5×119(mm)

•Flame Retardant:UL94-V0

•Installation Needs:3 Piece of 240mm connector B kit are needed for installation;optional cover


240mm Horizontal Tee Connector Free

•Item No:LL267

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:410×347×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut each 12 piece(LT338


360mm Horizontal Tee

•Item No:31820

•Application:360×100mm Fibre Management System

•Spec:360×100(mm)

•Overall:493×493×118(mm)

•Flame Retardant:UL94-V0

•Installation Needs:nstallation needs 3 piece of 360 type A connectors;optional cover


60mm Vretical Tee

•Item No:31140

•Application:60×60mm Fibre Management System

•Spec:60×60(mm)

•Overall:300×199×180(mm)

•Flame Retardant:UL94-V0

•Installation Needs:3 Connectors are needed for installation;optional cover


240mm To 120mm Vertical Tee

•Item No:36340

•Application:240×100mm Fibre Management System

•Spec:240-120(mm)

•Overall:300×277×190(mm)

•Flame Retardant:UL94-V0

•Installation Needs: 3 Connectors are needed for installation;optional cover


120mm Vretical Tee

•Item No:31340

•Application: 120×100mm Fibre Management System

•Spec:120×120(mm)

•Overall:300×199×180(mm)

•Flame Retardant:UL94-V0

•Installation Needs: 3 Connectors are needed for installation;optional cover


120mm Cut-In Tee

•Item No:313E0

•Application: Fibre Management System

•Spec:120×100(mm)

•Overall:233×132×116(mm)

•Flame Retardant:UL94-V0

•Installation Needs:1 Connectors are needed for installation;T shape screw(LT5B4 P55) and twist head nut each 2 piece(LT338 P55);optional c


150mm Cut-In Tee

•Item No:314E0

•Application:Fibre Management System

•Spec:150×100(mm)

•Overall:263×102×107(mm)

•Flame Retardant:UL94-V0

•Installation Needs:1 Connectors are needed for installation;T shape screw(LT5B4 P55) and twist


60mm Horizontal 90° Elbow

•Item No:31190

•Application:60×60mm Fibre Management System

•Spec:60×60(mm)

•Overall:134×134×61(mm)

•Flame Retardant:UL94-V0

•Installation Needs:No accessories;optional cover


120mm Horizontal 90° Elbow

•Item No:31390

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:258×258×118(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 Connectors are needed for installation;optional cover


120mm Horizontal 90° Elbow Connector Free

•Item No:LL236

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:222×222×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut each 8 piece(LT338


120mm Horizontal 45° Elbow Connector Free

•Item No:LL266

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:196×193×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut each 8 piece(LT338


​240mm Horizontal 90° Elbow

•Item No:31690

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:377.5×377.5×119(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 connectors are needed for installation;optional cover


240mm Horizontal 90° Elbow Connector Free

•Item No:LL266

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:347×347×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs:T shape screw(LT5B4 P55) and twist head nut each 8 piece(LT338


240mm Horizontal 45° Elbow Connector Free

•Item No:LL26F

•Application:240×100mm Fibre Management System

•Spec:240×100(mm)

•Overall:347×347×121(mm)

•Flame Retardant:UL94-V0

•Installation Needs: plastic round head screw(LT5B4 P55) and square nut each 8


360mm Horizontal 90° Elbow

•Item No:31890

•Application:360×100mm Fibre Management System

•Spec:360×100(mm)

•Overall:493×493×118(mm)

•Flame Retardant:UL94-V0

•Installation Needs:2 piece of 360 type A connectors;optional cover


Connector Kit

•Item No:311A0

•Application:60×60mm FIBRE MANAGEMENT SYSTEM

•Spec:60×60(mm)

•Overall:90×50×54(mm)

•Flame Retardant:UL94-V0

•Installation Needs:No screws are needed for normal installation


120mm Type A Connector Kit

•Item No:LL231

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:182×100×129(mm)

•Flame Retardant:UL94-V0

•Installation Needs:plastic round head screw and square nut each 8 piece


120mm Type B Connector Kit

•Item No:LL232

•Application:120×100mm Fibre Management System

•Spec:120×100(mm)

•Overall:169×84×122(mm)

•Flame Retardant:UL94-V0

•Installation Needs:Accessories 8 piece of round head screws(LT5B4 P55)


120mm Type C Connector Kit

•Item No:LL233

•Application:120×100mm Fibre Management System<

•Spec:120×100(mm)

•Overall:167×60×119(mm)

•Flame Retardant:UL94-V0

•Installation Needs:Accessories 8 piece of round head screws(LT5B4 P55)


150mm Type A Connector Kit

•Item No:LL241

•Application:150×100mm Fibre Management System

•Spec:150×100(mm)

•Overall:182×52×112(mm)

•Flame Retardant:UL94-V0

•Installation Needs:plastic round head screw and square nut each 8 piece

Web capture_9-5-2023_11718_.jpeg
Web capture_9-5-2023_11491_.jpeg
Web capture_9-5-2023_114833_.jpeg
Web capture_9-5-2023_105646_.jpeg

Explore top-quality fiber ducting solutions for data center infrastructure, featuring durable materials conduits that provide secure cable protection and efficient management for fiber optic cables. Designed for easy, tool-less installation, our fiber ducting systems offer flexibility, reliability, and long-lasting performance.

bottom of page
